Local Grill Monitoring Setup

System Overview: The Local Grill Monitoring Setup provides a 100% self-hosted, cloud-free telemetry and historical graphing pipeline for the FireBoard 2 (FBX2-GJ8RC3JRD) 6-probe grill thermometer. The FireBoard 2 itself has no IP address and no Wi-Fi connection. Instead, an internal Seeed Studio XIAO ESP32-C3 bridge (hostname fireboardctl.drheck.dev, static DHCP IP 10.0.0.71, Wi-Fi MAC 80:f1:b2:51:49:20), switched on and off in hardware by an IRLB8721PBF N-Channel MOSFET driven directly from the FireBoard's [Pin 35: TXD0] pad, reads all probe channels over Bluetooth Low Energy GATT (94:54:c5:f7:1c:fa) and posts live updates over Wi-Fi to https://grill.drheck.dev (http://10.0.0.3:8088/api/ingest).

1. Hardware Wiring & Flashing Guide (Seeed Studio XIAO ESP32-C3 + IRLB8721PBF MOSFET)

1.1 Parts Used

• Microcontroller (fireboardctl.drheck.dev): Seeed Studio XIAO ESP32-C3 ($21\text{ mm} \times 17.5\text{ mm}$, Wi-Fi STA MAC 80:f1:b2:51:49:20, static DHCP IP 10.0.0.71, built-in Li-Ion battery pads on underside + external U.FL antenna socket).
• External Antenna: Included Seeed U.FL (IPEX) 2.4 GHz flexible dipole sticker antenna (snap onto the XIAO's ANT socket before powering on; adhere inside the plastic FireBoard shell away from the metal Li-Ion pouch cell).
• Hardware Power Switch MOSFET: IRLB8721PBF TO-220 Logic-Level N-Channel MOSFET ($V_{\text{GS(th)}} = 1.35\text{ V–}2.35\text{ V}$, $R_{\text{DS(on)}} \approx 0.013\text{ }\Omega$ at $V_{\text{GS}} = 3.3\text{ V}$).

1.2 Step-by-Step Pin Connections (4 Wires Total)

MOSFET Pin Orientation (IRLB8721PBF): Hold the MOSFET with the black printed label facing you and the metal heatsink tab facing away (legs pointing down). From left to right, the 3 legs are:
• Pin 1 (Left Leg): Gate (G) — Trigger input ($3.3\text{ V}$ ON / $0.0\text{ V}$ OFF)
• Pin 2 (Middle Leg): Drain (D) — Switched ground going to XIAO BAT-
• Pin 3 (Right Leg): Source (S) — True ground going to FireBoard Battery - (GND)

1. Wire 1 (BAT+ Power): FireBoard Battery + (Red) $\longrightarrow$ XIAO underside BAT+ pad.
2. Wire 2 (Source Ground): FireBoard Battery - (Black / GND) $\longrightarrow$ MOSFET Pin 3 (Right Leg, Source).
3. Wire 3 (Drain Switched Ground): MOSFET Pin 2 (Middle Leg, Drain) $\longrightarrow$ XIAO underside BAT- pad.
4. Wire 4 (Gate 3.3V Trigger): FireBoard 6-pin header top-left pad ([Pin 35: TXD0]) $\longrightarrow$ MOSFET Pin 1 (Left Leg, Gate).
   • When the FireBoard 2 is turned ON, [Pin 35: TXD0] outputs $3.30\text{ V}$, turning the IRLB8721PBF MOSFET ON and connecting the XIAO's BAT- pad to ground so the XIAO boots immediately.
   • When the FireBoard 2 is turned OFF, [Pin 35: TXD0] drops to $0.00\text{ V}$, turning the IRLB8721PBF MOSFET OFF and completely disconnecting the XIAO from the battery ($0.000\text{ mA}$ standby drain).

1.3 Complete 4-Wire Schematic

  FIREBOARD 2 MAIN PCB / BATTERY                   IRLB8721PBF MOSFET              SEEED XIAO ESP32-C3
  ==============================                   (Label Facing You)              ===================

  1S Li-Ion Battery (+) [3.7V-4.2V] ---------------------------------------------> Underside [BAT+] Pad

  6-Pin Header [35 TXD0] (3.3V ON / 0V OFF) ----> Pin 1 [Gate (G) - Left]

  1S Li-Ion Battery (-) / [GND] ----------------> Pin 3 [Source (S) - Right]

                                                  Pin 2 [Drain (D) - Middle] ----> Underside [BAT-] Pad

Why Power Connects to the Underside BAT+ / BAT- Pads (Not the Top 5V Pin): On the Seeed Studio XIAO ESP32-C3, the top 5V (VBUS) pin passes through a protection Schottky diode ($\Delta V_{\text{diode}} \approx 0.34\text{ V}$) before feeding the XC6206P332MR $3.3\text{ V}$ LDO ($\Delta V_{\text{drop}} \approx 0.25\text{ V}$), requiring at least $3.85\text{ V}$ on 5V before the $3.3\text{ V}$ rail sags. Soldering to the underside BAT+ pad bypasses the Schottky diode and feeds the LDO directly ($V_{\text{min}} = 3.30\text{ V} + 0.25\text{ V} = 3.55\text{ V}$), running cleanly across the entire $3.5\text{ V–}4.2\text{ V}$ discharge curve of the 1S Li-Ion cell.

1.4 Building, Flashing & Bench Testing (PlatformIO)

1. Snap the U.FL antenna onto the XIAO ESP32-C3 before powering on.
2. Copy include/secrets.example.h to include/secrets.h in ~/git/grill-sync and set your 2.4 GHz Wi-Fi credentials:

   #define WIFI_SSID "Your_2.4GHz_WiFi_SSID"
   #define WIFI_PASSWORD "Your_WiFi_Password"


3. Compile, flash over USB-C, and open the live serial monitor (115200 baud):

   $ pio run -t upload -t monitor


4. Turn on the FireBoard 2 nearby with a probe plugged into Channel 1. Within 5 seconds, the serial console outputs:

   === FireBoard 2 BLE -> Wi-Fi Sync (fireboardctl.drheck.dev) ===
   [WiFi] Connected, IP: 10.0.0.71, MAC: 80:F1:B2:51:49:20
   [BLE] Found FireBoard (94:54:c5:f7:1c:fa, RSSI -42 dBm)
   [BLE] Connected to FireBoard 2
   [BLE] Subscribed and sent 0x01 start command
   [BLE] Ch 1: 72.5 F
   [HTTP] POST http://10.0.0.3:8088/api/ingest -> 200


2. FireBoard 2 Hardware Forensics & PCB Pinout Reference

2.1 Internal ESP32-WROVER-E Photograph & Pin Labels

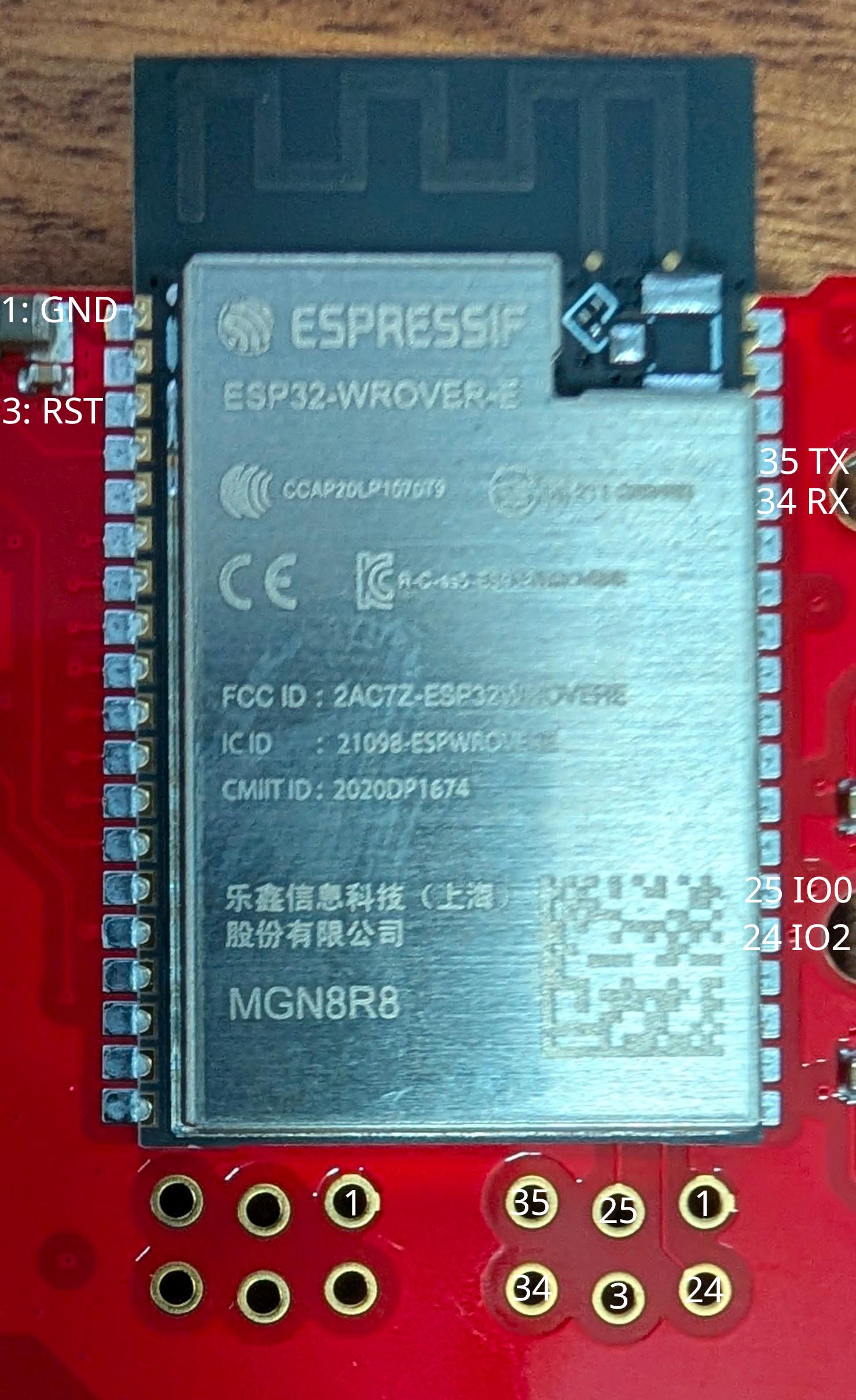

Figure 1: FireBoard 2 internal ESP32-WROVER-E (MGN8R8) module and unpopulated 6-pin 1.27mm UART bootloader header with verified pin numbers.

2.2 Unpopulated 6-Pin 1.27mm (0.050") Debug Header Pinout

Located immediately below the ESP32-WROVER-E module on the main PCB. All pads were verified by continuity against the castellated ESP32-WROVER-E pins:

      TOP ROW (Closer to ESP32 bottom edge)
   +----------------+----------------+----------------+
   |  [Pin 35] *    |  [Pin 25]      |  [GND]         |
   |  UART0 TXD0    |  GPIO0 (BOOT)  |  Ground        |
   |  (Right #23)   |  (Right #14)   |  (Shield/1/15) |
   +----------------+----------------+----------------+
   |  [Pin 34]      |  [Pin 3]       |  [Pin 24]      |
   |  UART0 RXD0    |  EN / RST      |  GPIO2 (Strap) |
   |  (Right #22)   |  (Left #3)     |  (Right #13)   |
   +----------------+----------------+----------------+
      BOTTOM ROW (Closer to PCB edge)

   * [Pin 35: TXD0] (top-left pad) outputs 3.30V when FireBoard is ON
     and 0.00V when FireBoard is OFF — wire this pad to MOSFET Pin 1 (Gate).

Additional Module Reference Pad: Left #2 (Pin 2: 3V3) carries the regulated $3.30\text{ V}$ rail when the FireBoard is powered on and drops to $0.00\text{ V}$ when powered off.

2.3 Hardware & Network Identity Reference

2.4 Why the Stock FireBoard Firmware Is Bypassed via BLE

1. Closed Local Network Surface: Full 65,535-port TCP/UDP nmap scans and packet captures confirmed the stock FireBoard 2 firmware listens on zero local ports and requires remote cloud servers when on Wi-Fi. Keeping the FireBoard 2 off Wi-Fi and reading its local BLE GATT server eliminates all external network traffic.
2. Locked Factory Silicon (eFuses): Interrogation over the 6-pin UART bootloader header proved all hardware security eFuses on the FireBoard's internal ESP32-WROVER-E are permanently burned:
   • Flash Encryption (FLASH_CRYPT_CNT = 127 / 0b1111111): All 7 bits burned and write-protected; plaintext flashing renders the chip unbootable.
   • UART Crypto Disabled (DISABLE_DL_ENCRYPT = True, DISABLE_DL_DECRYPT = True): The ROM bootloader is physically barred from encrypting new images or decrypting flash over UART.
   • Secure Boot v1 (ABS_DONE_0 = True): Only images signed with FireBoard's private key (BLOCK2, read/write protected) are booted.
   • Silent UART Console (MTDO Strapped Low + ESP_LOG_NONE): Zero application log bytes are emitted on UART0 during normal boot.

FLASH_CRYPT_CNT        (BLOCK0) = 127 R/- (0b1111111)  [Flash encryption permanently enabled; odd bit count = 7; Write-Protected]
FLASH_CRYPT_CONFIG     (BLOCK0) = 15  R/W (0xf)        [Full AES flash encryption tweak configuration]
ABS_DONE_0             (BLOCK0) = True R/W             [Secure Boot V1 permanently enforced on boot]
DISABLE_DL_ENCRYPT     (BLOCK0) = True R/W             [UART bootloader flash encryption disabled]
DISABLE_DL_DECRYPT     (BLOCK0) = True R/W             [UART bootloader flash decryption disabled]
DISABLE_DL_CACHE       (BLOCK0) = True R/W             [UART bootloader MMU flash cache disabled]
JTAG_DISABLE           (BLOCK0) = True R/W             [Hardware JTAG debugging permanently disabled]
CONSOLE_DEBUG_DISABLE  (BLOCK0) = True R/W             [ROM BASIC fallback console disabled]
BLOCK1 (Flash Key)              = ?? ?? ... -/-        [256-bit AES Flash Encryption Key: Read & Write Protected]
BLOCK2 (Secure Boot Key)        = ?? ?? ... -/-        [256-bit Secure Boot Key: Read & Write Protected]

3. FireBoard 2 BLE GATT Protocol Reference

Zero Cloud Dependency: The FireBoard 2 BLE GATT server remains active with zero Wi-Fi configuration, allowing the XIAO ESP32-C3 (fireboardctl.drheck.dev) to stream all 6 channels locally.

BLE Handshake & Notification Payload Format

1. Scan & Connect: Connect to BLE MAC 94:54:c5:f7:1c:fa (or any device matching prefix 94:54:c5:f7:1c: / name FBX). No pairing PIN or bond is required.
2. Subscribe: Enable GATT notifications on c2f780ec-45e1-452b-a879-327e3140d1f1.
3. Start Stream: Write 0x01 (1 byte, with response) to c2f780ec-45e1-452b-a879-327e3140d1e8.
4. Parse JSON Notifications: The FireBoard immediately begins emitting UTF-8 JSON notifications for each connected thermistor probe (channel 1 through 6):

   {
     "channel": 1,
     "temp": 225.4,
     "degreetype": 2,
     "date": "2026-09-28T20:30:00Z"
   }


   • channel: Probe port number (1..6).
   • temp: Floating-point temperature (null or <= 0 when unplugged).
   • degreetype: 2 = Fahrenheit (°F), 1 = Celsius (°C).

4. Firmware Repository (~/git/grill-sync) & Magic Constants (include/config.h)

All hardware, BLE protocol, and network constants are isolated in include/config.h (with Wi-Fi credentials in gitignored include/secrets.h).

Repository Layout

• platformio.ini — PlatformIO configuration targeting seeed_xiao_esp32c3 (huge_app.csv 3.1 MB partition table, NimBLE-Arduino, ArduinoJson).
• include/config.h — Central configuration file containing all network URLs, bridge identity (fireboardctl.drheck.dev, 10.0.0.71, 80:f1:b2:51:49:20), and BLE GATT UUIDs.
• include/secrets.example.h / include/secrets.h — Local Wi-Fi credentials (WIFI_SSID, WIFI_PASSWORD) and optional local overrides.
• src/main.cpp — Non-blocking BLE GATT client, JSON parser, and HTTP POST transmitter.

Complete Reference of Constants in include/config.h

5. Dashboard Infrastructure Reference on Host ul (https://grill.drheck.dev)
